Sale!

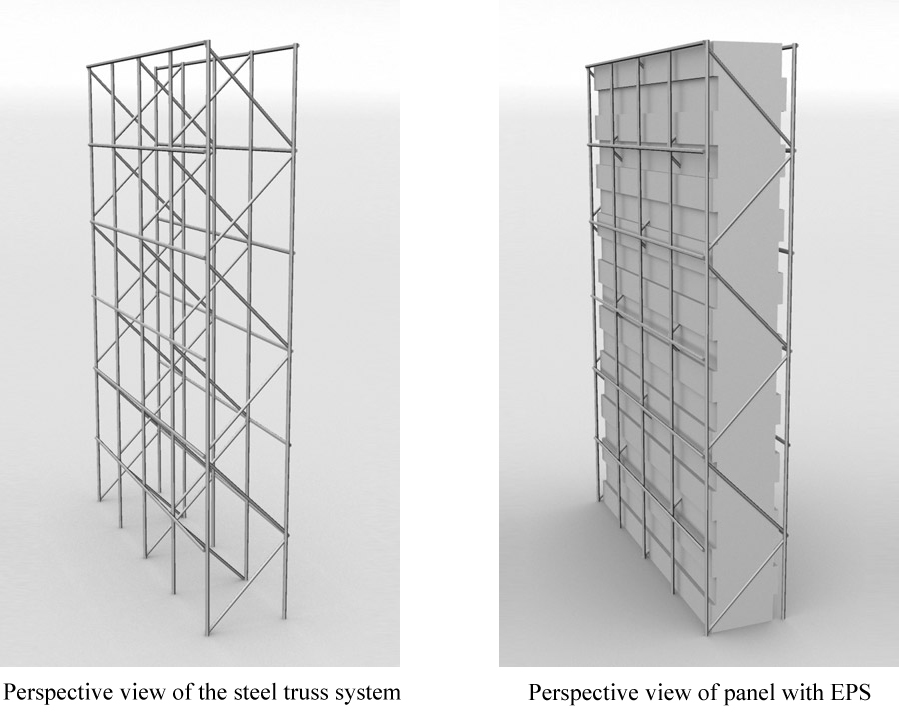

Steel truss system
Steel truss system - Image 2

Steel truss system

Original price was: 100.000 ر.ع..Current price is: 2.000 ر.ع..

Thermal Insulation Board

  •  EPS (Expanded Polystrene sheet)
  •  16 kg/m3 density (different densities are possible)
  • DIN B1 Non flammable class
  • Grooved surface facilitating the plaster application
  • Thickness: 7,5 cm
  • Heat transmission coefficient of 10 cm panel plastered wall:
    Ud: 0,65 W/m2K – Ut: < 0,65 W/m2K
Category:

Steel truss system

  • The steel mesh with 10 x 10 cm grid on both surfaces
  • The continious diagonal wires connecting steel meshes with 10 cm gaps
  • 100 diagonal wires / m2
  • Each connection point has 3 weldings
  • Dimensions: 10 cm x 120 cm x free length
  • Çevre ve Şehircilik (Bayındırlık) poz numarası : 04.612/7BSteel wire
  •  SAE 1006
  • Tensile strength: 650-750 N/mm2
  • Diameter: 2,8 – 3,5 mm
  • Dip galvanised
